- Country
- United States of America (USA)
- Manufacturer / Brand
- Packard Bell Co.; Los Angeles (CA)
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180534

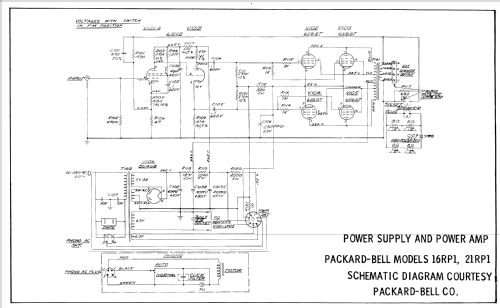

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BQ7A 12AT7 6U8 6AU6 6E5 6AU6 6BA6 6BE6 12AT7 12AX7 ECC83 ECC83 12BH7A 12AU7 6X4 6AN8 6V6GT 6V6GT 6V6GT 6V6GT 5U4GB
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: 16RP1 - Packard Bell Co.; Los Angeles
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-58, Set 407, Servicer)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
