21DC2-U Ch= 98D1
Packard Bell Co.; Los Angeles (CA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Packard Bell Co.; Los Angeles (CA)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 299241
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BZ7 6U8 6AF4 6CB6 6CB6 6AS8 6AW8 6AN8 6AU6 6T8 6AQ5 6BY6 6S4 6AL5 6CG7 6BQ6GTB 6AX4GT 1B3GT 5U4GB 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21DC2-U Ch= 98D1 - Packard Bell Co.; Los Angeles
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Packard - Bell model 21DC2 - U is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 98D1 ,VHF-UHF Tuner 10544 and picture tube 21ALP4A.
- Mentioned in

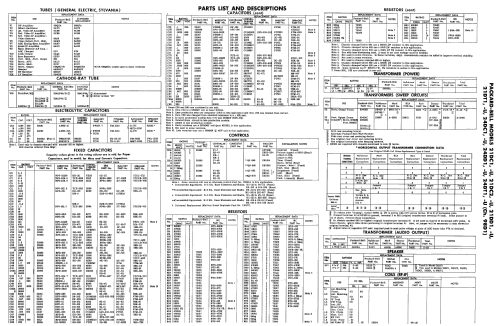

- Photofact Folder, Howard W. SAMS (Set 367 Folder 1 Production changes bulletin 189 dated 8-57)
- Literature/Schematics (1)

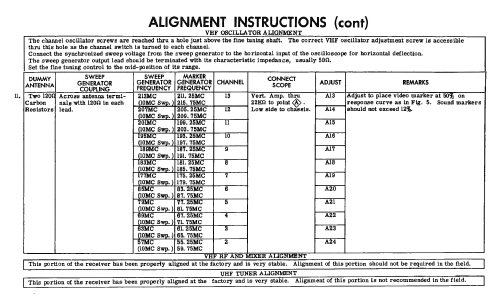

- Photofact Folder, Howard W. SAMS (Set 318 Folder 9 dated 5-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
