- Country
- United States of America (USA)
- Manufacturer / Brand
- Packard Bell Co.; Los Angeles (CA)
- Year
- 1952 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 354336

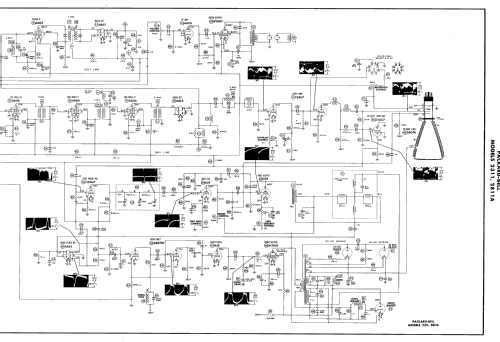

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 28
- Valves / Tubes
- 6CB6 or 6AG5 or 6BC5 6J6 6AU6 6AU6 6AU6 6AL5 12AU7 12AU7 6AG5 6AL5 6AV6 6V6GT 6J5 6S4 6AL5 6SN7GT 6J5 6CD6G 6U4G 1B3GT 1B3GT 5U4G 12AT7 6BE6 6BA6 6AU6 6AL5 20CP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2811A - Packard Bell Co.; Los Angeles
- Shape
- Console with any shape - in general
- Notes
-
Packard Bell model 2811A is a 20” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a TV-FM-AM-phono combination receiver, VHF tuner 10528 and picture tube 20CP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 161, folder 6, dated 3-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
