- Country
- United States of America (USA)
- Manufacturer / Brand
- Packard Bell Co.; Los Angeles (CA)
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 129138
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org

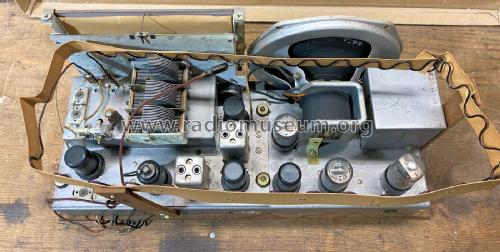

- Model: 48G - Packard Bell Co.; Los Angeles
- Notes
- Push-pull af output stage; built-in loop antenna; television or phono input.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 3, 1940
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
- Other Models
-
Here you find 387 models, 195 with images and 338 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Packard Bell Co.; Los Angeles (CA)
Forum contributions about this model: Packard Bell Co.;: 48G
Threads: 1 | Posts: 1
I found the Schematic in Riders Volume 12 (12-3) and that is listed as being from July 1940 to April 1941.
Virgil Ezell, 19.Jun.14
