• Country
• United States of America (USA)

• Manufacturer / Brand
• Packard Bell Co.; Los Angeles (CA)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50147

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

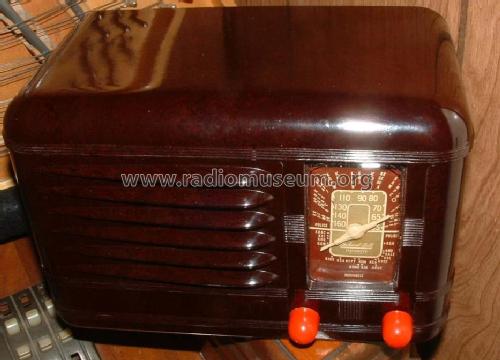

• Model: 5DA Ch= V-2122 - Packard Bell Co.; Los Angeles

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 9.3 x 6 x 5 inch / 236 x 152 x 127 mm

• Notes
• Colors available: Ivory and Walnut.

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• Guide to Old Radios

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 16, Folder 476-29)

• Other Models

• Here you find 393 models, 196 with images and 345 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Packard Bell Co.; Los Angeles (CA)
