• Country
• United States of America (USA)

• Manufacturer / Brand
• Packard Bell Co.; Los Angeles (CA)

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50151

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 41 80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

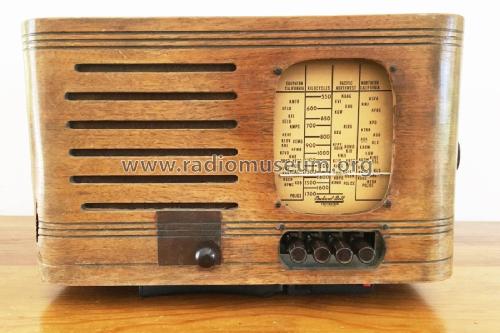

• Model: 5M - Packard Bell Co.; Los Angeles

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 190 x 150 mm / 12.6 x 7.5 x 5.9 inch

• Notes

• Gerät mit 4 Stationstasten (4 station buttons)

  Sets are also known with 6Q7 instead of 75

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Other Models

• Here you find 390 models, 195 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Packard Bell Co.; Los Angeles (CA)
