- Country
- United States of America (USA)
- Manufacturer / Brand
- Packard Bell Co.; Los Angeles (CA)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78444
Sams photofact.

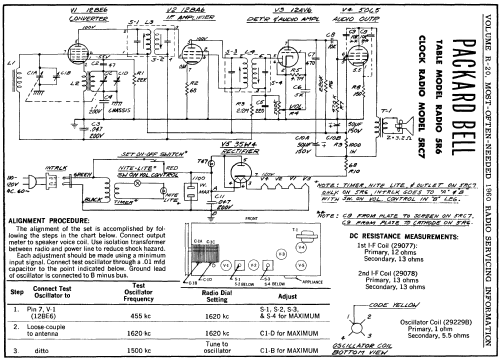

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: 5R6 - Packard Bell Co.; Los Angeles
- Shape
- Tablemodel, with any shape - general.
- Notes
- Sams photofact set 473 folder 10 date 2-60 features the Packard - Bell models 5R6 and 5RC7 as the same schematic.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Mentioned in
- Beitman Radio Diagrams, Vol. 20, 1960
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 473 folder 10 date 2-60)
