• Country
• United States of America (USA)

• Manufacturer / Brand
• Packard Bell Co.; Los Angeles (CA)

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91094

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BJ6 12BE6 6BJ6 12AV6 50C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org

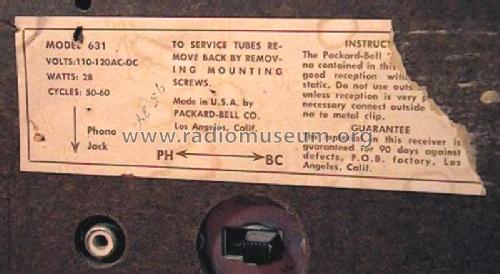

• Model: 631 - Packard Bell Co.; Los Angeles

• Notes

• There is also the akin looking dual band model 632 with additional Shortwave.

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 14, 1954

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
