Battery Eliminator Kit B-10
PACO Electronics Co., Inc.; Glendale, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- PACO Electronics Co., Inc.; Glendale, NY
- Year
- 1958 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 142099

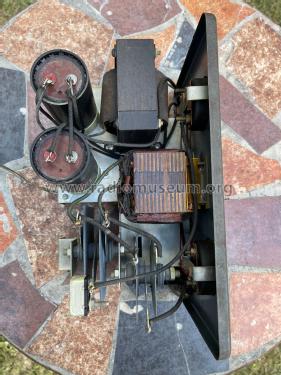

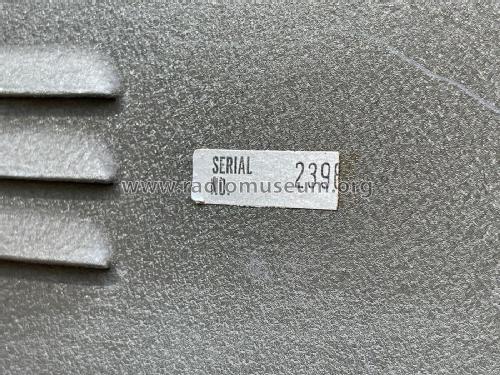

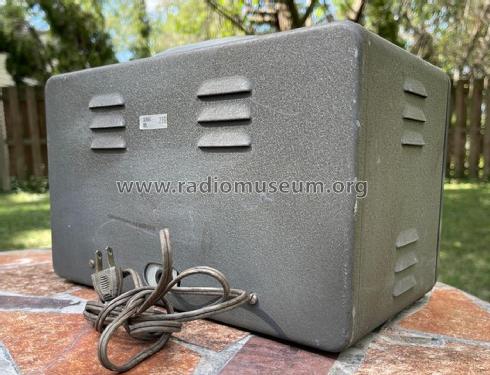

Courtesy of Bryan Walker.
Courtesy of Bryan Walker.
Courtesy of Bryan Walker.
Courtesy of Bryan Walker.
Courtesy of Bryan Walker.
Courtesy of Bryan Walker.
Courtesy of Bryan Walker.
Radio Electronics, Feb. 1958, page 136.
- Wave bands
- - without
- Details
- Power Supply (not only Batt.El.)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Battery Eliminator Kit B-10 - PACO Electronics Co., Inc.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
PACO B-10 Battery Eliminator Kit:
Special low-ripple 6V or 12V outputs (5 A max only), gauges for volts and amps, and voltage control up to approximately 20 V.
Continuous Duty Current Rating: 10 A at 6 V, 6 A at 12 V.
Intermittent Duty Current Rating: 20 A at 6 V, 12 A at 12 V.
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Radio Electronics (U.S. Magazine) (Feb. 1958, page 136, "NEW DEVICES...Model B-10...")
- Author
- Model page created by a member from A. See "Data change" for further contributors.
