- Country
- Switzerland
- Manufacturer / Brand
- Paillard AG; St. Croix
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119255
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

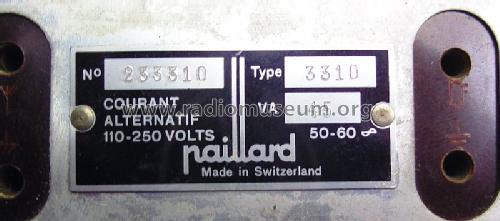

- Model: 3310 - Paillard AG; St. Croix
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 355 x 235 x 190 mm / 14 x 9.3 x 7.5 inch
- Notes
- Keine Tasten nur 4 Drehschalter: Senderwahl, Lautstärke, Klangfarbe sowie Wellenbereiche / TA. Dial lamps: 2x 6,3V/0,3A.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Felix Kreitlow. See "Data change" for further contributors.
