4309 Export

Paillard AG; St. Croix

Data
Forum
Pictures
Collections

  • Year
  • 1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 227496

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 4309 Export - Paillard AG; St. Croix
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 470 x 320 x 220 mm / 18.5 x 12.6 x 8.7 inch
  • Notes

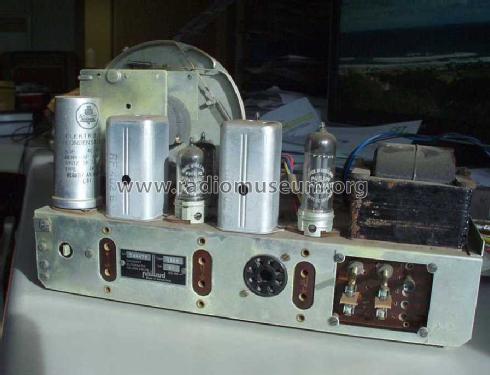

  • Gerät aus Südafrika. Entstammt einer Phono-Kombination, deshalb der zusätzliche rückseitige Anschlußsockel.

    Die Knöpfe fallen auf da sie aus Holz gedrechselt sind.

  • Net weight (2.2 lb = 1 kg)
  • 8.250 kg / 18 lb 2.7 oz (18.172 lb)
  • Author
  • Model page created by Siegfried Raedel. See "Data change" for further contributors.
