4501F
Paillard AG; St. Croix
- Country
- Switzerland
- Manufacturer / Brand
- Paillard AG; St. Croix
- Year
- 1946–1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13018
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Metal case
- from Radiomuseum.org

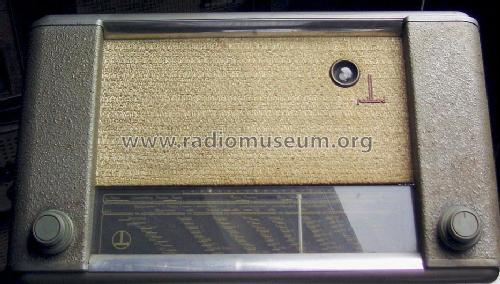

- Model: 4501F - Paillard AG; St. Croix
- Dimensions (WHD)
- 540 x 320 x 230 mm / 21.3 x 12.6 x 9.1 inch
- Notes
- F= Metall. Kurzwellenlupe, mit eigener Linearskala (0 - 165).
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Price in first year of sale
- 555.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
