• Country
• Switzerland

• Manufacturer / Brand
• Paillard AG; St. Croix

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25519

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 58 2A7 58 2A6 47 80

• Main principle
• Superheterodyne (common); ZF/IF 120 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

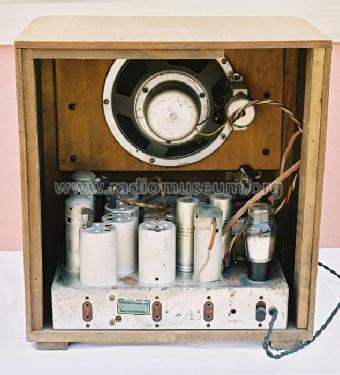

• Model: Electromat - Paillard AG; St. Croix

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 400 x 430 x 270 mm / 15.7 x 16.9 x 10.6 inch

• Notes
• Äusserlich ähnlich Mod. Paillard 55 aber mit 5 Querbalken über dem Lautsprecher statt 3. Wahrscheinlich Produktion für Electromateriel, Lausanne. Schema: gleich wie Paillard 56MGR (ID=12684)

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb
