• Country
• Switzerland

• Manufacturer / Brand
• Paillard AG; St. Croix

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12725

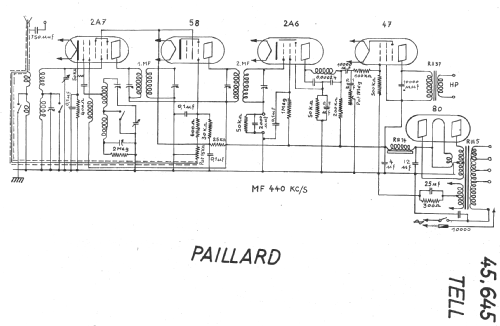

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 2A7 58 2A6 47 80

• Main principle
• Superheterodyne (common); ZF/IF 440 kHz

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• from Radiomuseum.org
• Model: Tell 645 - Paillard AG; St. Croix

• Notes
• Ch=45

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Other Models

• Here you find 551 models, 268 with images and 303 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Paillard AG; St. Croix
