Bi-Linear Amplifier 300A
Palomar Electronics , Escondido (CA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Palomar Electronics , Escondido (CA)
- Year
- 1970 ??
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 335953
- Number of Tubes
- 6
- Number of Transistors
- 2
- Semiconductors
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Bi-Linear Amplifier 300A - Palomar Electronics ,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 12.5 x 5.25 x 9.125 inch / 318 x 133 x 232 mm
- Notes
-

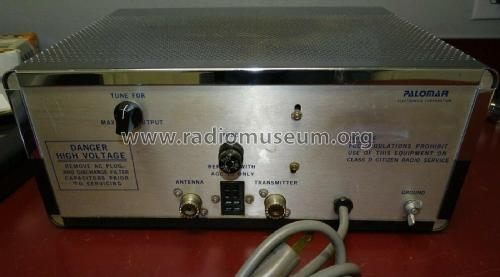

2-stage linear amplifier with fan, for HAM bands, AM and SSB, could be misused for CB;

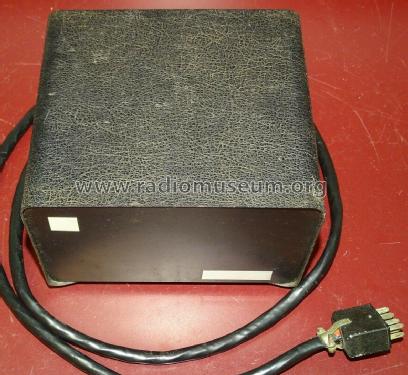

separate RF deck and power transformer.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
