National Panasonic 2-Band 8-Transistor R-210J

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 235614

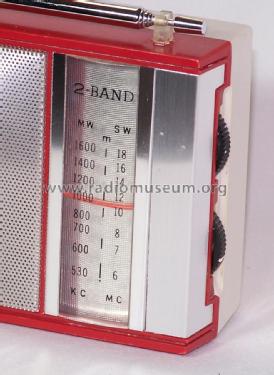

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SC184 2SA101 2SA101 2SB173 2SB171 2SB171 2SB176 2SB176 OA90

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 4 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.2 W (0.35 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Panasonic 2-Band 8-Transistor R-210J - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 94 x 43 mm / 5.9 x 3.7 x 1.7 inch

• Notes

• Panasonic 2-Band Radio Receiver Model R-210J.
  Tuning Range: MW 525 - 1605 kHz, SW 5,9 - 18 MHz.
  Leather Case.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
