National Panasonic Hi-Fi 2-Speaker All-Transistor T-350

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1963–1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140729

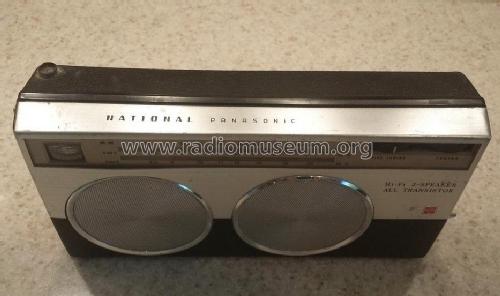

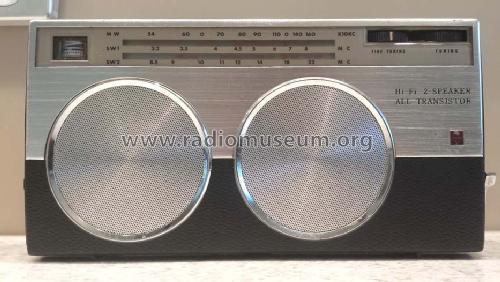

• Picture

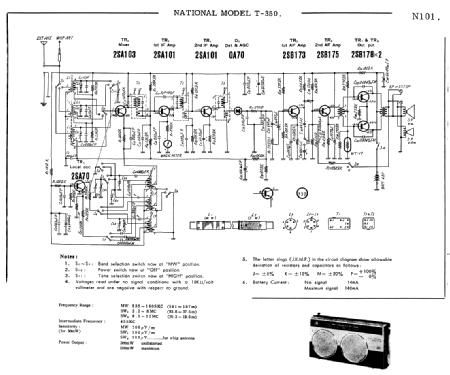

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA103 2SA70 2SA101 2SA101 2SB173 2SB175 2SB178 2SB178 OA70

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / D: 3 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 0.3 W (0.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Panasonic Hi-Fi 2-Speaker All-Transistor T-350 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10.125 x 5.375 x 2.25 inch / 257 x 137 x 57 mm

• Notes

• National Model T-350

  Eight transistors, one diode, three-band portable radio with two Hi-Fi speakers. Built-in Ferrite antenna and telescopic whip antenna. SW bands with magic meter and fine tuning control, with thermistor temperature compensation. Rich volume and quality tone with NFB circuit. Attractive cabinet available in blue, brown or black colours.

  Specifications: frequency range MW 535-1605 kC/s (kHz). SW1 3.8 - 8 MC/s (MHz). SW2 8.5 - 22 MC/s (MHz). Power output 500 mW. Speakers:  2½" & 3½" PM dynamic. 3 x UM-1 (D Cells) flashlight batteries. (MINGAY'S PRICE SERVICE)

• Net weight (2.2 lb = 1 kg)
• 3 lb 7 oz (3.437 lb) / 1.561 kg

• Price in first year of sale
• 51.45 AUS £

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Mingay's Price Service (Aug 1963 to Feb 1965.)

• Literature/Schematics (1)
• J.R. Publications Transistor Radio Service Handbook (Group C1, 1964, Page N101.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
