• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137653

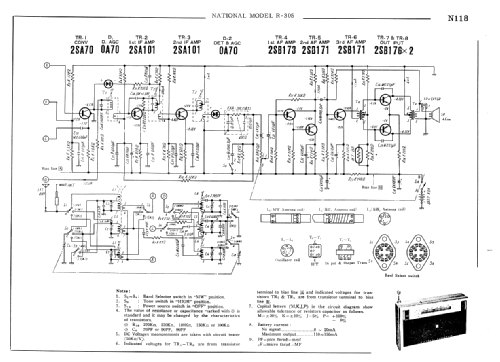

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA70 2SA101 2SA101 2SB173 2SB171 2SB171 2SB176 2SB176 OA70

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / C: 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Panasonic 3-Band 8-Transistor R-305 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 190 x 105 x 45 mm / 7.5 x 4.1 x 1.8 inch

• Notes

• National Panasonic R-305, 3-Band 8-Transistor;
  Gray case, earphones jack,
  SW1: 2.3 - 7 MHz, SW2: 7 - 22 MHz,
  suitable brown leather case known.

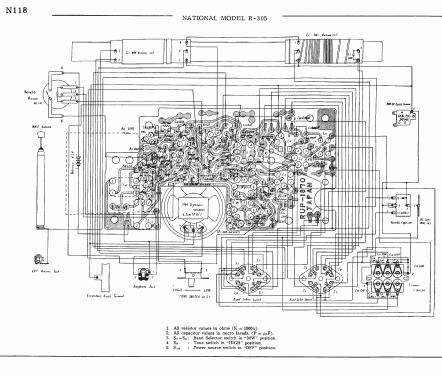

  PCB number: RUP-1870

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
