National 3-Band 8 Transistor T-65Y

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1961/1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 258892

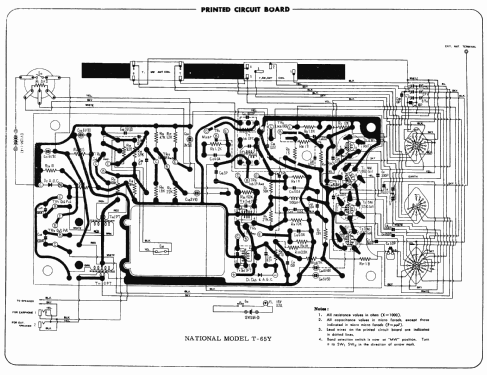

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / C: 4 x 1,5 & AA: 1 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Power out
  • 0.15 W (0.2 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: National 3-Band 8 Transistor T-65Y - Panasonic, Matsushita,
  • Dimensions (WHD)
  • 9 x 5.75 x 2 inch / 229 x 146 x 51 mm
  • Notes

  • National T-65Y Portable Radio

    Three-band eight transistor transistor, two diode portable radio with built-in dial light. Batteries: four x UM2 1.5V cells and one UM3 (penlight) cell for dial light. Built-in Ferrite rod antenna and telescopic whip antenna.

    Frequency range: BC, 540-1600 kC/s (kHz); SW1, 2.5-6.2 MC/s (MHz); SW2, 7-18 MC/s (MHz).

    Accessories: heavy leather case with carrying straps, earphone and wire aerial. (MINGAY'S PRICE SERVICE)

    This model sold in Australia during 1961 & 1962 for £52/10/-. Price includes batteries.
    Weight with batteries is 2 lbs. 10 ozs.

  • Net weight (2.2 lb = 1 kg)
  • 2 lb 2 oz (2.125 lb) / 0.965 kg
  • Literature/Schematics (1)

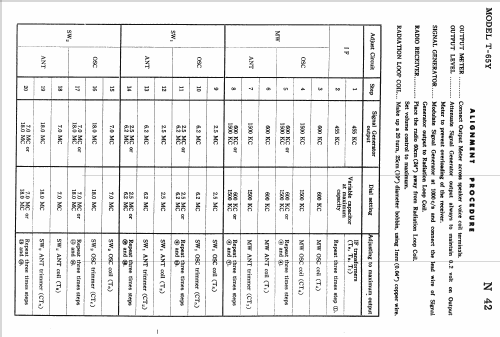

  • - - Manufacturers Literature (National Radio Service Note)
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
