GX3002 3 Band Cassette Radio R-510B

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1973–1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 247116

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 200; 220; 240 / C: 4 x 1,5 V / DC: 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: GX3002 3 Band Cassette Radio R-510B - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • National Model R510

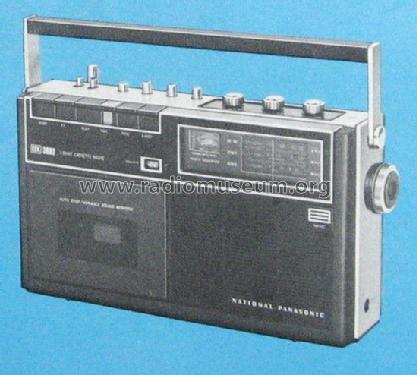

    A 3-band portable radio-cassette recorder with 3-way power operation.

    Features: built-in condenser microphone, tuning/battery level indicator, sleep switch, tone control. Microphone mixing circuit, tape monitor circuit. Jacks for earphone, extension speaker, extension power, auxiliary in, microphone, remote and DC in. (FROM MINGAY'S PRICE SERVICE)

    Tuning Range:
    MW 525~1605 kHz
    SW1 2.3~7 MHz
    SW2 7~22 MHz

  • Price in first year of sale
  • 139.95 AUS $
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
