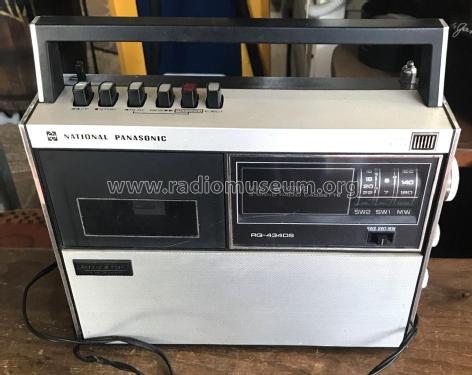

3-Band Radio Cassette RQ-434DS

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1973/1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 327580

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 90-109; 110-125; 200-219; 220-250/ C: 1.5 x 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 3-Band Radio Cassette RQ-434DS - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 11.875 x 10.25 x 3.375 inch / 302 x 260 x 86 mm
  • Notes

  • National Model RQ434DS

    Deluxe portable cassette with 3-band radio and built-in microphone operation. Roller bar tuning for radio. Cassette has 'auto-stop'; sleep switch and automatic recording level. Large 1.5W output. Operates from 6 UM2 (C cells) batteries, car adaptor or 240V. (MINGAY'S PRICE SERVICE)

    See also version with FM, Model RQ-434S.

  • Net weight (2.2 lb = 1 kg)
  • 6 lb 0 oz (6 lb) / 2.724 kg
  • Price in first year of sale
  • 99.95 AUS $
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
