• Year
  • 1970 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 357743

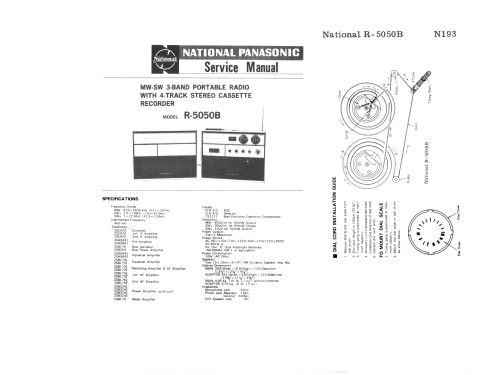

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 17
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 50-60 Hz, 90-110; 110-125; 200-225; 220-250 / D: 6 x 1.5 / DC: 9 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 3-Band Stereo Cassette R-5050B - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 13.5 x 12.53125 x 4.71875 inch / 343 x 318 x 120 mm
  • Notes
  • National Model R-5050B

    A portable AC/DC stereo cassette recorder with 3-band AM radio. Latest "twin piece" design folds together for carrying.

    Features: simple push button operation. Two separate 6" x 4" speakers. Special meter for recording level and/or tuning sensitivity. Output 2 watts per channel. Jacks for phono input. Line output and microphones. Operates from 240 volts or 6 x UM-1 batteries (D-cells). (FROM MINGAY'S PRICE SERVICE)

    Frequency range:
    MW 525~1605 kHz
    SW1 2.3~7 MHz
    SW2 7~22 MHz

  • Price in first year of sale
  • 262.00 AUS $
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
