5-Band Receiver RF-B3
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251640
Ebay auction by user ele-dos 271478568525
Ebay auction by user ele-dos 271478568525
Ebay auction by user ele-dos 271478568525
Ebay auction by user ele-dos 271478568525
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage

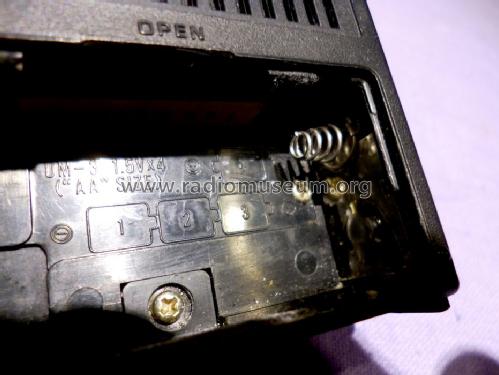

- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5-Band Receiver RF-B3 - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 180 x 110 x 30 mm / 7.1 x 4.3 x 1.2 inch
- Notes
-
Coverage:
- Japanese domestic FM & TV sound = 76 - 108 MHz
- MW = 530 - 1600 kHz
- SW1 = 2,3 - 5,5 MHz
- SW2 = 5,5 - 11,0 MHz
- SW3 = 11.0 - 18.0 MHz
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
