• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 161219

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA102 2SA101 2SB173 2SB175 2SB176 2SB176 OA90

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Panasonic 6-Transistor R-1057 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 85 x 45 mm / 5.9 x 3.3 x 1.8 inch

• Notes

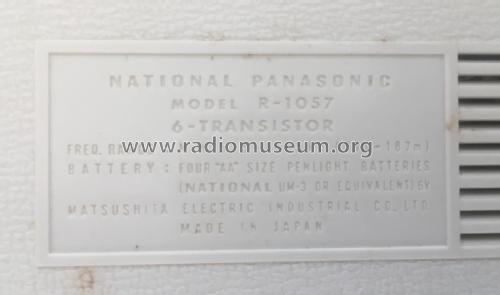

• National-Panasonic R-1057, 6-Transistor;
  Earphones jack, made in Japan.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Wolfgang Lohrie. See "Data change" for further contributors.
