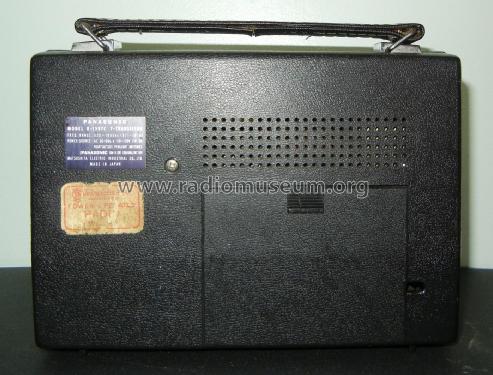

National Panasonic 7 Transistor R-1597B
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 307024
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 220 - 250 / AA: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Panasonic 7 Transistor R-1597B - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 203 x 152 x 64 mm / 8 x 6 x 2.5 inch
- Notes
-
Tone switch high/low - earphone jack - carrying handle - frequency range: 525 - 1605 kHz - power consuption 2 W. 220 Volts modell of R-1597.
- Net weight (2.2 lb = 1 kg)
- 0.650 kg / 1 lb 6.9 oz (1.432 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
