• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141161

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6AQ8 6BE6 6BA6 6BA6 6AV6 12AT7 12AX7 12AT7 6AR5 6AR5 6CA4

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 110 Volt

• Loudspeaker
• 4 Loudspeakers

• from Radiomuseum.org
• Model: 911 - Panasonic, Matsushita,

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (1)

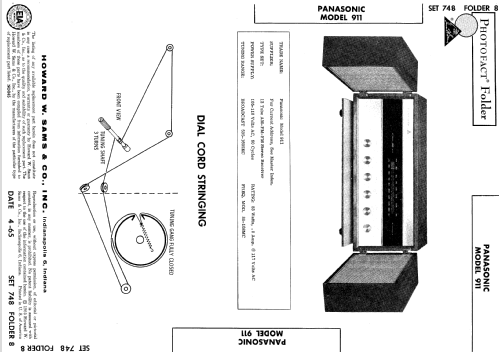

• Photofact Folder, Howard W. SAMS (Date 4-65, Set 748, Folder 8)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
