AC-Battery FM-AM RF-549B

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 355891

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 50 Hz, 220 / AA: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AC-Battery FM-AM RF-549B - Panasonic, Matsushita,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 200 x 178 x 60 mm / 7.9 x 7 x 2.4 inch
  • Notes

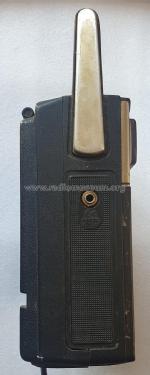

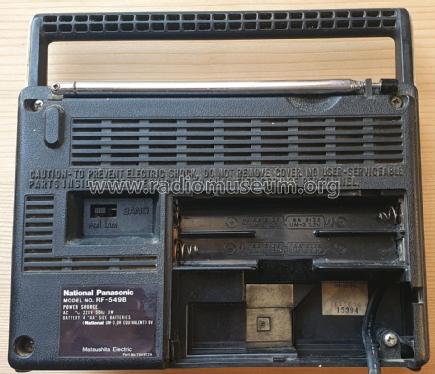

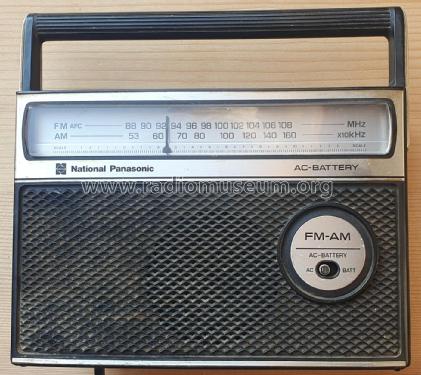

  • On the front, AC-battery selector; right side, wheel controls for on/off-volume and tuning; left side, earphone socket, 8 Ω only. On the back, FM-AM selector, access to the battery compartment and the built in power cord.
    Ferrite 8 cm, telescopic antenna 6 sections, 60 cm, with non-rotating base.
    Rigid handle, non-rotating.

    Also see Panasonic model AC-Battery FM-AM RF-549.

  • Net weight (2.2 lb = 1 kg)
  • 0.850 kg / 1 lb 14 oz (1.872 lb)
  • Author
  • Model page created by Felice Nicolini. See "Data change" for further contributors.
