National Cassette Recorder RQ-200S

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1970 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 333163

• Picture
• Schematics

Previous Next

Previous Next

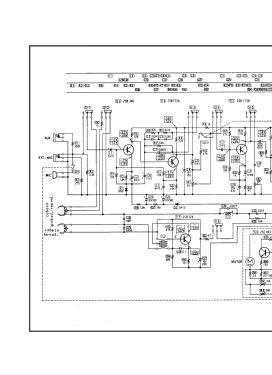

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC183 2SC183 2SB473 2SB346 2SB175 2SB175 2SB175 2SB324 2SB324 OA90 OA81 OA70 OA70

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220; 240 / 6 ×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Cassette Recorder RQ-200S - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Panasonic Portable, Mono, Cassette Tape Recorder Model RQ-200S

• Mentioned in
• -- Schematic

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
