CD Stereo System SA-AK210

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 2000 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 335803

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 230-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 55 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: CD Stereo System SA-AK210 - Panasonic, Matsushita,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 250 x 350 x 340 mm / 9.8 x 13.8 x 13.4 inch
  • Notes

  • - CD Stereo System

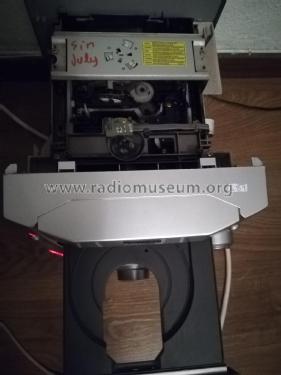

    - 5 CD Changer
    - Double cassette tape deck
    - RDS system for FM
    - Subwoofer Output
    - Matching loudspeakers: 2x SB-AK210, 2-way, 16 cm woofer, 6 cm tweeter, 6 Ω impedance, 220 x 330 x 227 mm each, weight 3.1 kg

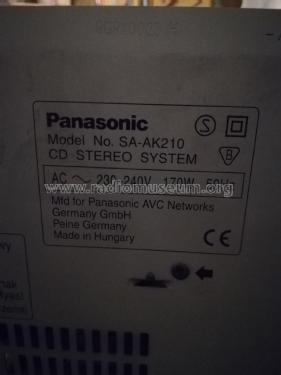

    Mfd. for Panasonic AVC Networks Germany GmbH, Peine
    Made in Hungary

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
