• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 2007 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 349777

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CD/Tape/Radio/Media Player Stereo System SA-PM45 - Panasonic, Matsushita,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 164 x 227 x 314 mm / 6.5 x 8.9 x 12.4 inch

• Notes

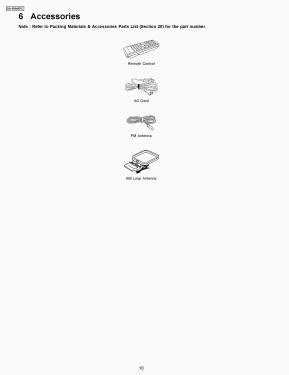

• The Panasonic SA-PM45 model is the main unit of the SC-PM45 CD Stereo System, where th SB-PM45 are the Speakers. A remote control is also part of the system.

  The SA-PM45 unit features a FM/MW radio, a CD player, a Tape player, and USB Media Player. Offers a Clock, Sleep timer, and Alarm. This model was made for several country markets with slight different specifications.

  Main features (European version)

  • FM: 87.5 - 198.0 MHz (100 kHz steps)
  • MW: 522 - 1620 kHz (9 kHz steps)
  • Manual and ATS tuning
  • Memory presets: 20 on FM, 15 on MW
  • Audio equalizer and surround sound
  • Output pwer: 20W/channel (10% THD; 60 - 20000 Hz) over 4 Ω loads
  • USB port for MP3 sound files
  • 3.5 mm Auxiliary audio jack (Music Port) with 250 mV over 12 kΩ load
  • 3.5 mm headphones jack
  • Power supply: 230 VAC, 63W



• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Author
• Model page created by Jose Mesquita. See "Data change" for further contributors.
