Deluxe Stereo Cassette RS-282S

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1968 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 249841

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 33
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 50 - 60 Hz: 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 20 W (max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Deluxe Stereo Cassette RS-282S - Panasonic, Matsushita,
  • Shape
  • Book-shelf unit.
  • Notes

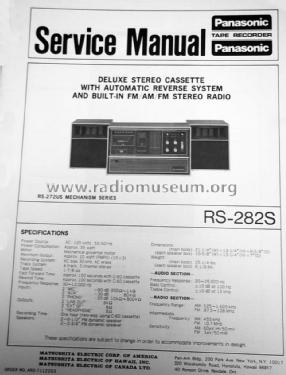

  • Panasonic Deluxe Stereo Cassette with Automatic Reverse System and built-in FM/AM/FM Stereo Radio Model RS-282S.
    Front loading Stereo Cassette, 30 - 12000 Hz
    Tuning Range: AM 525 - 1605 kHz, FM 87.5 - 108 MHz
    Speaker-System: 2 x 6.5" & 2 x 2.75" - Dim. Speaker-Box: 10.625" x 13.25" x 7", 6.125 lbs
    Main Unit: 21.25" x 13.25" x 6.625", Weight: 25.25 lbs.

    33 Transistors and 17 Diodes all listed one per type. 1 rectifier bridge.

    This device was compatible with the voltages of different countries to which it was exported: 90-109; 110-125; 200-219; 220-250V AC.

  • Mentioned in
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
