Digital Production Mixer WJ-MX10 G, B

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1990 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 359094

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without

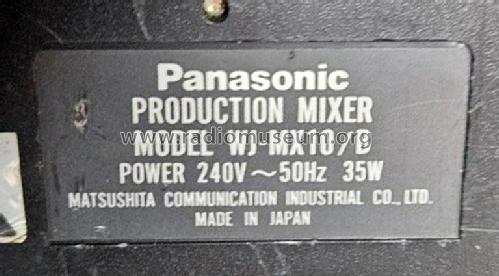

  • Power type and voltage
  • Alternating Current supply (AC) / 50 Hz, 220 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Production Mixer WJ-MX10 G, B - Panasonic, Matsushita,
  • Shape
  • Tablemodel, slant panel.
  • Notes

  • Panasonic Digital Production Mixer WJ-MX10,

    Video

    • Input source: 2 (source 1 and source 2)
    • Input Video: 1.0 Vp-p/75 Ω or high impedance loop-through, PAL composite signal, BNC
    • External camera input: 1.0 Vp-p/75 Ω CCIR or PAL composite signal, BNC x1
    • Sync output: 1.0 Vp-p/75 Ω, composite sync, BNC x1
    • Recording output: x2 (REC OUT 1 and REC OUT 2)
    • Video output:1.0 Vp-p/75 Ω, PAL composite signal, BNC
    • Video-Preview input: 1.0 Vp-p/75 Ω, PAL composite signal, BNC x1
    • Sync range: 15,625 kHz + 300 Hz, SC: 4.433619 MHz + 40 Hz
    • Frequency Response: 3 MHz (-3 dB) (Video, Y-Signal), 20 - 20 kHz (-3 dB) (Audio)
    • Max. resolutiong: 300 lines
    • Gain: Unity (Video)
    • Signal-to-noise Ratio: > 46 dB (Video), 50 dB (Audio)

    Audio

    • Input -8 dBV/1 kΩ, Cinch
    • Microphon input (mono): -60 dB/600 Ω
    • AUX input: -10 dBV/15 kΩ, Cinch
    • Audio output: -10 dBV/15 kΩ, Cinch
    • Headphones output: -30 dB/8 Ω, (8 Ω - 100 Ω), 6.3 mm jack
  • Author
  • Model page created by Pasquale Sorrentino. See "Data change" for further contributors.
