DVD Recorder DMR-EX773

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 2010 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 326322

• Picture

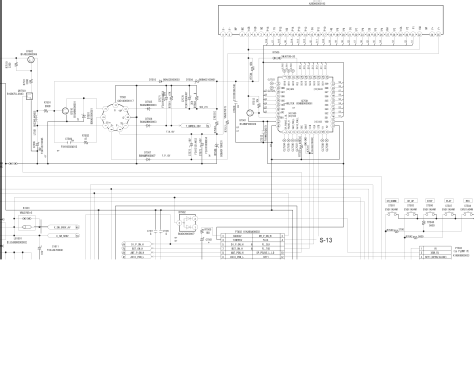

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• CD-DVD-VMD-Blu-ray for video

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: DVD Recorder DMR-EX773 - Panasonic, Matsushita,

• Shape
• Book-shelf unit.

• Notes

• Panasonic DMR-EX773

  • Recording System Audio  Dolby Digital, Linear PCM
  • Recording System Video: Secam, PAL, NTSC
  • Turner: DVB-T and PAL-BG
  • HDD: 250 GB

  Made in Slovakia

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
