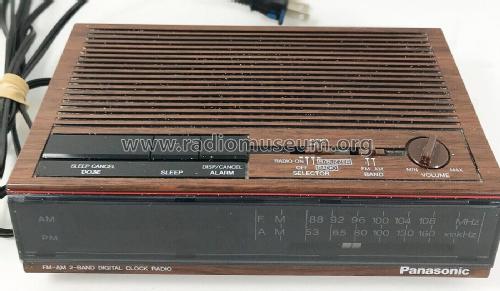

FM-AM 2-Band Digital Clock Radio RC-6060

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 344348

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Power out
  • 0.3 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM-AM 2-Band Digital Clock Radio RC-6060 - Panasonic, Matsushita,
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 209 x 62 x 129 mm / 8.2 x 2.4 x 5.1 inch
  • Notes

  • Tabletop FM-AM 2-Band Digital Clock Radio Model Panasonic RC-6060

    Frequency Range:
    AM 525-1610 kHz
    FM 88 - 108 MHz

    Power Consumption 120VAC 60Hz - 5 Watts

    Made in Singapore



  • Net weight (2.2 lb = 1 kg)
  • 0.690 kg / 1 lb 8.3 oz (1.52 lb)
  • Mentioned in
  • - - Manufacturers Literature (Panasonic Service Manual GAD 8602008C1 - A1)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
