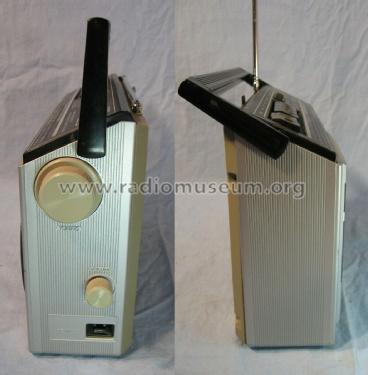

FM-AM 2-Band Radio Cassette Recorder RX-1220

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 342192

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 / 10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 60Hz 120 / D: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
  • Power out
  • 1.2 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM-AM 2-Band Radio Cassette Recorder RX-1220 - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 292 x 185 x 103 mm / 11.5 x 7.3 x 4.1 inch
  • Notes

  • Portable 2Band Mono Radio Cassette Recorder Model Panasonic RX-1220

    Variable Sound Monitor
    Built in mic

    Frequency Range:
    FM 88 - 108 MHz
    AM 525 -1610 kHz

    Frontloading Cassette Player/Recorder
    90 - 6000 Hz
    One Touch Recording
    Auto Stop

    Telescopic antenna
    Carrying Handle

    Power Consumption: 60Hz 120VAC 5 Watts

    Made in Taiwan



  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
