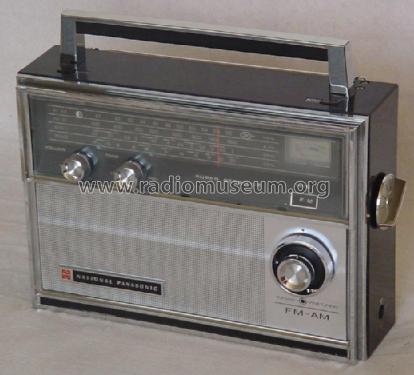

National Panasonic FM-AM 4-Band RF-1400

Barlow-Wadley Barlow's; South Africa

Data
Forum
Pictures
Collections

  • Year
  • 1969 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 268686

 Technical Specifications

  • Number of Transistors
  • 13
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 110-125; 220-250 / D: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: National Panasonic FM-AM 4-Band RF-1400 - Barlow-Wadley Barlow's; South
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 300 x 250 x 110 mm / 11.8 x 9.8 x 4.3 inch
  • Notes

  • Frequency Range:

    FM: 87 - 108 MHz
    MW: 525 - 1605 kHz
    SW1: 2.3 - 7 MHz
    SW2: 7 - 22 MHz

    Tuned RF stage, telescopic antenna, separate AM and FM external antenna and earth jacks, MPX out, Aux, record out and phono jack, signal strength/battery check meter, battery check switch, AFC on/off switch, earphone and external DC power jack, tone control, two dial lights, fine tuning.

    Weight with batteries.

    Made in South Africa by Barlow's Manufacturing Co. Ltd. under licence from Matsushita Electric Industrial Co., Ltd.

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Author
  • Model page created by Kevin Gregson. See "Data change" for further contributors.
