• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1982 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234465

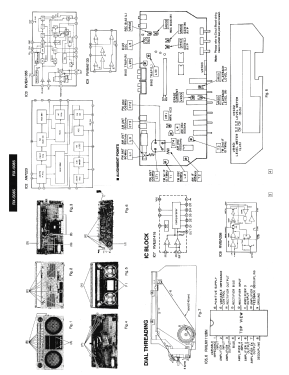

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120 / 8 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM-AM-FM Stereo Radio Cassette Recorder RX-5085 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 21 x 10.5 x 7 inch / 533 x 267 x 178 mm

• Notes

• Panasonic Portable FM-AM-FM Stereo Radio Cassette Recorder (Boombox, Ghettoblaster) Model RX-5085.
  Bass-, Treble-Control.
  Dolby System, Full Auto Stop, Metal Tape Capability, TPS (Tape Program Sensor), 3 digit analog counter.
  Carrying handle, telescopic antenna.
  Power Consumption 25 Watts.

• Net weight (2.2 lb = 1 kg)
• 13 lb 0 oz (13 lb) / 5.902 kg

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
