• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137850

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA70 2SA101 2SA101 2SB173 2SB171 2SB175 2SB178 2SB178 OA90 OA90

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

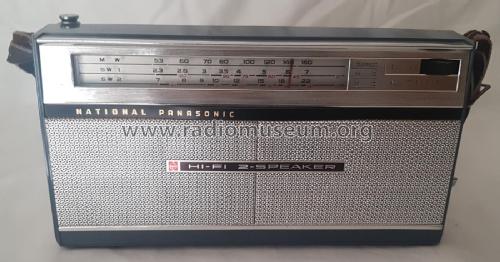

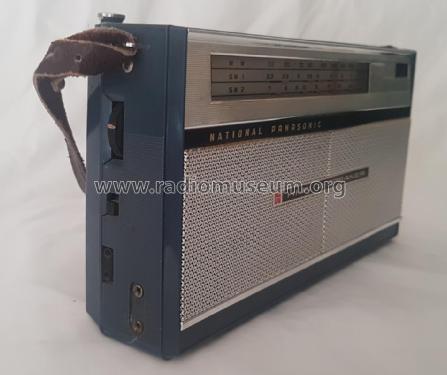

• Model: National Panasonic 3 Band 8 Transistor R-330Y - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• National Panasonic R-330Y, 3-Band 8-Transistor, Hi-Fi 2-Speaker,
  SW1: 2.3 - 7 MHz, SW2: 7 - 22 MHz, Black with silver metal front, suitable brown leather case known.

  Made in Japan. See also R-330Y made in Mozambique.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
