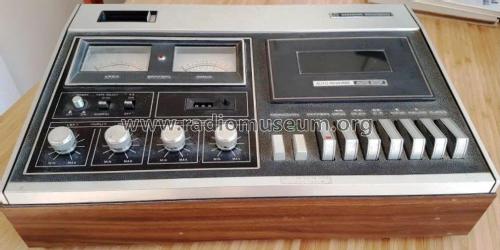

Stereo Cassette Deck RS-272US

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1973
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 221436

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 90-109; 110-125; 200-219; 220-250 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck RS-272US - Panasonic, Matsushita,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 15.375 x 4.375 x 10.375 inch / 391 x 111 x 264 mm
  • Notes

  • A stereo hi-fi cassette deck with Auto-Reverse. 2 heads, 1 motor, 3 digit tape counter, Normal/Cr02 tape select and NS switches, left and right VU recording level meters. Jacks for microphone, phono Line input, phono Line output, DIN tape input/output socket (mono/stereo switch on 120V model) and a jack for headphones.

    Specification
    Motor: Mechanical governor motor
    Track System: 4-track, 2-channel stereo
    Tape Speed: 1⅞ ips
    Recording Bias System: AC bias, 100kHz
    Frequency Response 30 - 12,000 Hz
    Inputs: MIC: –70 dB 600-20kΩ
    LINE: –30 dB 100kΩ
    Outputs: LINE OUT: 10kΩ
    HEADPHONE: 8Ω

    Versions/Power Requirements
    120 volts AC 50/60 Hz
    90-109, 110-125, 200-219, 220-250 volts AC 50/60 Hz with voltage selector

    Power Consumption: Approx. 10 W

  • Net weight (2.2 lb = 1 kg)
  • 11 lb 0 oz (11 lb) / 4.994 kg
  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual RS-271US)
