LW-MW All Transistor R-2079L
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161580
Ebay GB auction 330358879003 / adopted pic.
Ebay GB auction 330358879003 / adopted pic.

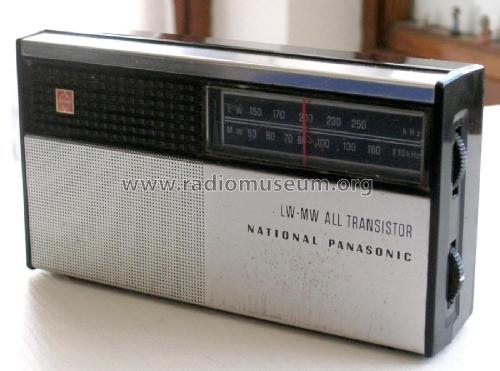

General view
Back
BJT detail
Dial and logo
Inside
"Made in Japan" (back, inside)
Back, detail
Small red logo
Back, inside, a serial number
Side, audio output detail
Side, volume and tune wheels
Serial number label (back, inside)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: LW-MW All Transistor R-2079L - Panasonic, Matsushita,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 165 x 90 x 45 mm / 6.5 x 3.5 x 1.8 inch
- Notes
- National-Panasonic R-2079L, LW-MW All Transistor;
Earphones jack, sold with black leather case.
- Net weight (2.2 lb = 1 kg)
- 0.370 kg / 0 lb 13 oz (0.815 lb)
- Mentioned in
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
