• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1964 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 336265

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 4GK5 7GS7 6EJ7 or EF184 6EJ7 or EF184 6EJ7 or EF184 12BY7A or EL180 8A8 or PCF80 6DT6 16A8 or PCL82 18GV8 or PCL85 8A8 or PCF80 25E5 or PL36 30AE3 or PY88 1X2B AW40-12

• Number of Transistors

• Semiconductors
• OA70 FR-1 FR-1 FR-1

• Main principle
• Superhet with RF-stage; ZF/IF 38900/33400/5500 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (max.)

• Material
• Metal case

• from Radiomuseum.org

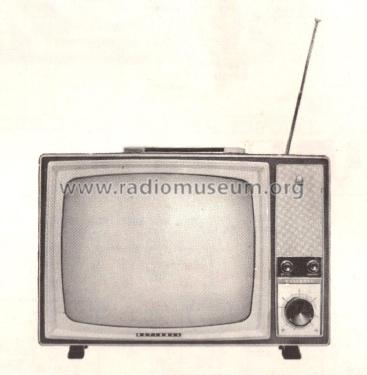

• Model: National EN2/C4 - Panasonic, Matsushita,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 350 x 300 mm / 19.7 x 13.8 x 11.8 inch

• Notes

• National EN2/C4  40 cm / 16" BW-TV, CCIR-tuner with VHF channel 2-11. Built-in telescopic antenna. Loudspeaker 6" x 3", earphone jack.

• Net weight (2.2 lb = 1 kg)
• 16.4 kg / 36 lb 2 oz (36.123 lb)

• Literature/Schematics (1)
• -- Original-techn. papers. (National service manual)

• Author
• Model page created by Adrian Riesen. See "Data change" for further contributors.
