• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 258110

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SA70 2SA101 2SA101 2SA101 2SB171 2SB172 2SB173 2SB175 2SB176 2SB176 OA90

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

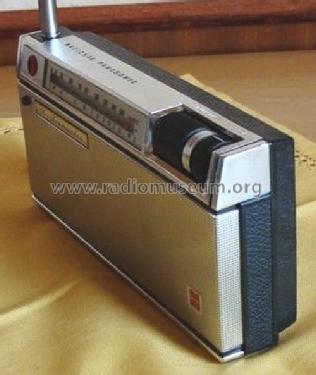

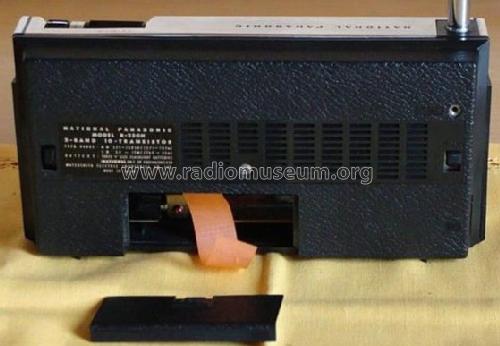

• Model: National Panasonic 2 Band 10 Transistor R-230H - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Frequency Range

  MW: 525-1605 kHz

  SW: 3.9-12 MHz.

  4"x 2.5", 8 ohm elliptical speaker , Two earphone/Ext. speaker jacks, Indicator lamp, Tone switch, Whip ANT., Ext. ANT.

  See also model R-230J with different SW band reception.


• Mentioned in
• -- Schematic

• Author
• Model page created by Daniel Rosha. See "Data change" for further contributors.
