• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 259606

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA341 2SA101 2SA101 2SB173 2SB175 2SB175 2SB178 2SB178 OA90 OA90

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / 110-125; 220-250 / D: 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

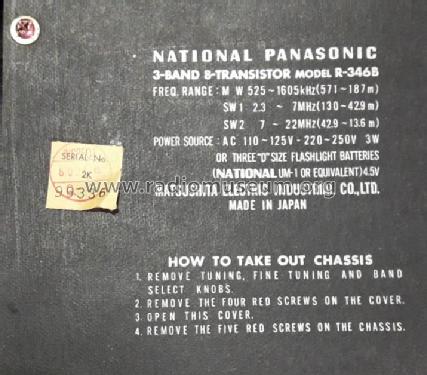

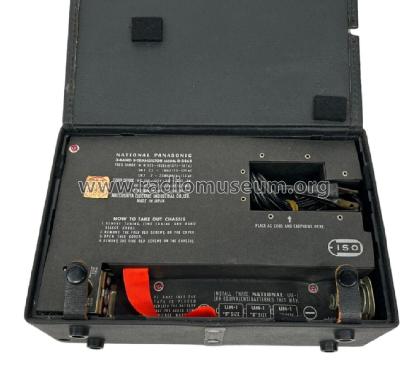

• Model: National Panasonic 3 Band 8 Transistor R-346B - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 7.5 x 3 inch / 254 x 191 x 76 mm

• Notes

• Frequency Range:

      MW: 525 - 1605 kHz
      SW1: 2.3 - 7 MHz.
      SW2: 7 - 22 MHz.
