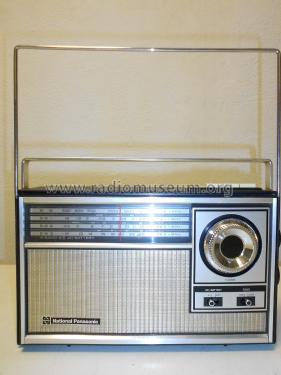

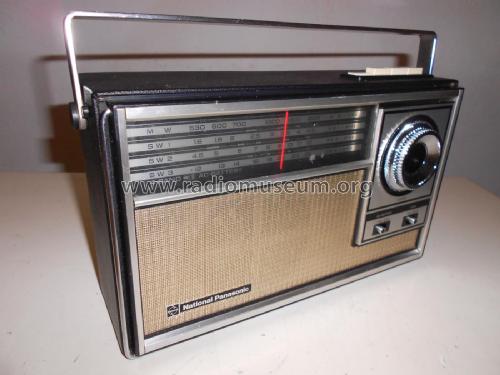

National Panasonic 4 Band 8 Transistor R-451B
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 305051
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / 50-60Hz, 110-125; 220-240 / D: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Panasonic 4 Band 8 Transistor R-451B - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 310 x 175 x 10 mm / 12.2 x 6.9 x 0.4 inch
- Notes
-
Controllo volume - commutatore tono high/low - commutatore AC/battery - regolazione fine tuning - presa Aux - presa per cuffia - antenna interna in ferrite - antenna esterna rettangolare - maniglia di trasporto - commutatore MW/SW1/SW2/SW3 - presa per antenna esterna/ground
Frequency range:
- MW: 525 - 1605 kHz
- SW1: 1.8 - 4.5 MHz
- SW2: 4.5 - 12 MHz
- SW3: 12 - 26.1 MHz
Made in Japan.
- Net weight (2.2 lb = 1 kg)
- 1.950 kg / 4 lb 4.7 oz (4.295 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
