• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 258087

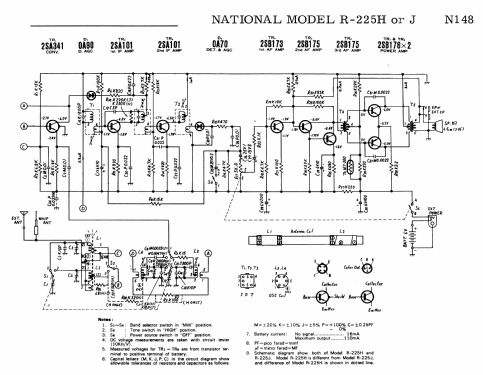

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA341 2SA101 2SA101 2SB173 2SB175 2SB175 2SB176 2SB176 OA70 OA70

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.2 W (0.35 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

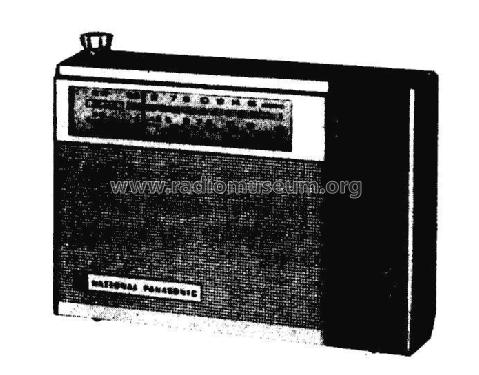

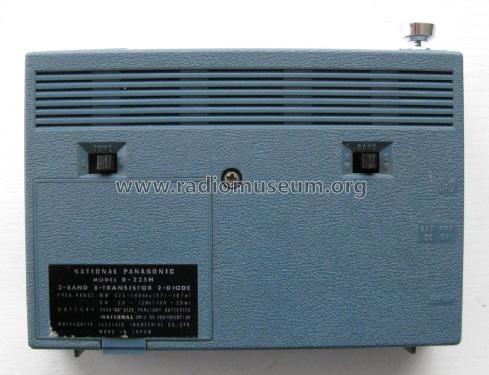

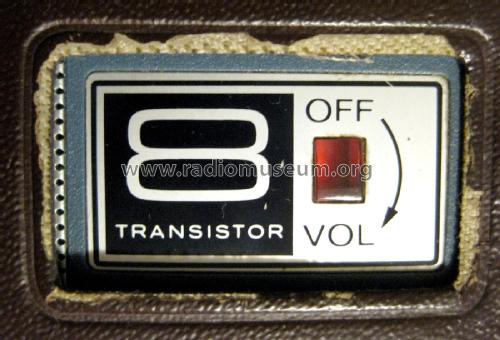

• Model: National Panasonic 8 Transistor R-225H - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 155 x 109 x 40 mm / 6.1 x 4.3 x 1.6 inch

• Notes

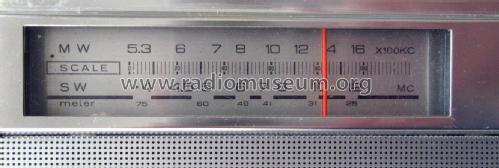

• Frequency Range

  MW: 525 - 1605 kHz

  SW: 3.9 - 12 MHz

  Weight with batteries

  See also model R-225J with different SW band reception.

• Net weight (2.2 lb = 1 kg)
• 0.590 kg / 1 lb 4.8 oz (1.3 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Daniel Rosha. See "Data change" for further contributors.
