• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1976 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 304683

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors
• 2SK49 2SC1359 2SC1359 2SC829 2SC829 2SC829 2SC829 2SC829 2SC829 2SC829 2SK49 2SC1359 2SC1359 2SC900 2SC945 2SB173 2SC945 2SC945 2SC1568 2SC1568 2SC828 2SC829 2SC829 2SC828

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-125; 220-240 / D: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 3.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

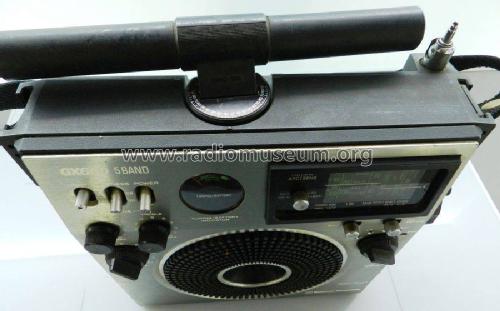

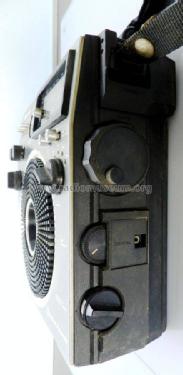

• Model: National Panasonic GX600 5 Band RF-1150LB - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 246 x 237 x 100 mm / 9.7 x 9.3 x 3.9 inch

• Notes

• A mains/battery 5 band AM/FM portable transistor radio. Tuning/battery indicator meter, tone controls, loudness, scale light, BFO, fine tuning, 120 minute timer, FM AFC, MW Sens, Mute, telescopic aerial, gyro ferrite bar antenna on top. Connections for external AM and FM aerials. Socket for earphone, DIN socket for tape recorder.

  Frequency Ranges:

  • VHF : 87.5 - 108 MHz
  • LW  : 145 - 355 kHz (2060 - 845 metres)
  • MW :  520 -1610 kHz (577 - 186 metres)
  • SW1: 3.9 - 12 MHz (76.9 - 25 metres)
  • SW2: 12 - 30 MHz (25 - 10 metres)

  Similar to the National Panasonic GX600 RF-1150LBE model.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Mentioned in
• Trader Service Sheet 3295/ 1977

• Literature/Schematics (1)
• - - Manufacturers Literature (Service Manual for the RF-1150LB/LBE)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
