• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 344482

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 240 / 6 / C: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Panasonic RQ-539LJ - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 349 x 209 x 116 mm / 13.7 x 8.2 x 4.6 inch

• Notes

• Variant for Czechoslovakia (Eastern Europe):

  FM frequency range: 65 - 74 MHz Voltage 220/110V

  Variant for UK (Western Europe):

  FM frequency range: 87.5 - 108 MHz Voltage 240/120V

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Mentioned in

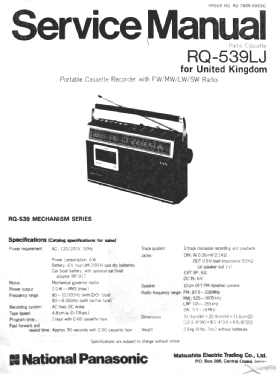

• service manual

• Literature/Schematics (1)
• service manual

• Literature/Schematics (2)
• Csabai Dániel, Rádió-magnók szervízkönyve I.

• Author
• Model page created by Vladimir Jirkal. See "Data change" for further contributors.

• Other Models

• Here you find 3049 models, 2826 with images and 632 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
