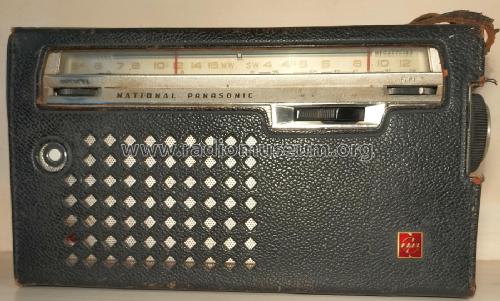

National Panasonic T-802
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 342274
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage

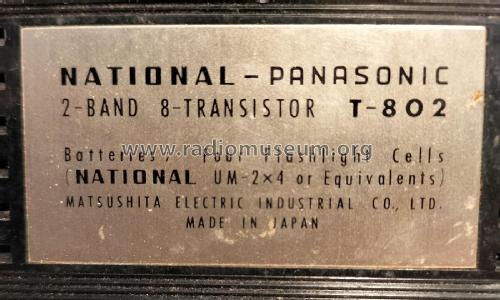

- Dry Batteries / D: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Panasonic T-802 - Panasonic, Matsushita,
- Shape

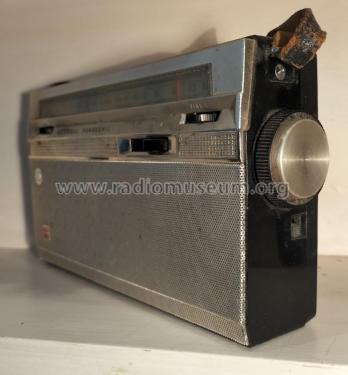

- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 235 x 125 x 50 mm / 9.3 x 4.9 x 2 inch
- Notes
-
L/H Tone switch, External antenna & earth terminals, two earphone or external speaker jacks.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
