• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 342743

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.1 W (0.15 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

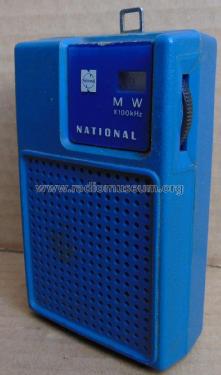

• Model: National R-1017D - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 106 x 32 mm / 2.6 x 4.2 x 1.3 inch

• Notes

• See also National R-1017X

• Net weight (2.2 lb = 1 kg)
• 0.180 kg / 0 lb 6.3 oz (0.396 lb)

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
