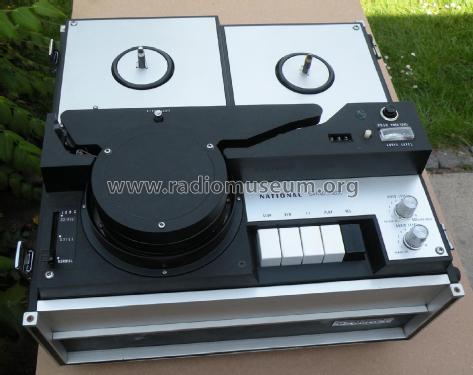

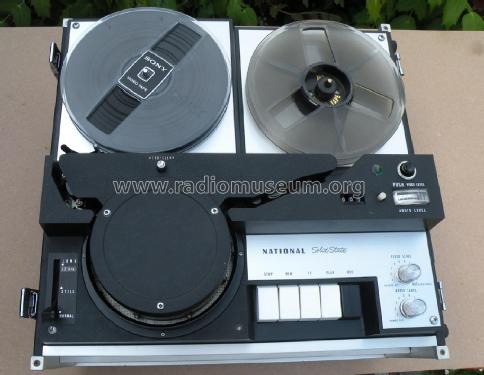

National Solid State Video Recorder NV-1070E-12
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1966 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 338242
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Video-Taperecorder/-Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: National Solid State Video Recorder NV-1070E-12 - Panasonic, Matsushita,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 265 x 420 mm / 16.5 x 10.4 x 16.5 inch
- Notes
-
Panasonic, Matsushita model National Solid State Video Recorder NV-1070E-12
Uses 1/2" tape. Maximum reel diameter 7".
CCIR b/w standard, 625 lines.
- Net weight (2.2 lb = 1 kg)
- 25 kg / 55 lb 1.1 oz (55.066 lb)
- Author
- Model page created by Mick Metselaar. See "Data change" for further contributors.
